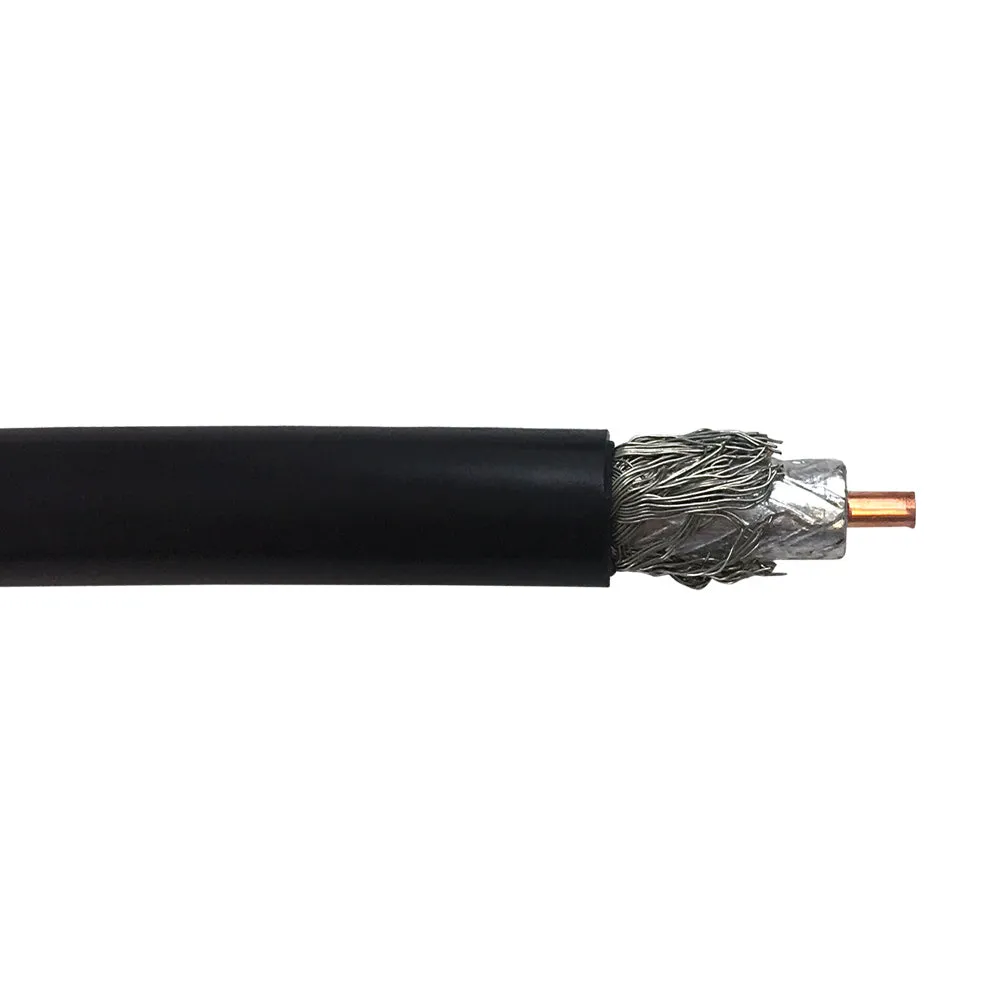

This low loss bulk RF-400 cable is 1000 feet in length and consists of a 2.74mm (0.11 inch) copper clad aluminum wire. It is ideal for jumper assemblies in wireless
communication systems, short antenna feeder runs, GPS and mobile antenna applications.
Specifications
| Physical Characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black | ||||||||||
| Inner Conductor Material | Copper Clad Aluminum | ||||||||||
| Dielectric Material | Foam PE | ||||||||||
| First Shield | Bonded Aluminum Foil | ||||||||||
| Second Shield | Tinned Copper Wire Braid (168*0.12) 90% Coverage | ||||||||||
| Jacket | PE, Outdoor UV Resistant, Black | ||||||||||
| Diameters |
| ||||||||||
| Performance | |||||||||||
| Impedance | 50±3Ω | ||||||||||
| Capacitance | 78pF/m | ||||||||||
| Velocity of Propagation | 85% | ||||||||||
| DC Resistance | Inner Conductor Outer Conductor 4.6Ohm/Km 5.4Ohm/Km | ||||||||||
| Shielding Effectiveness | ≥90dB | ||||||||||
| Voltage With Stand | 2500.0V | ||||||||||
| Temperature | Installation: -20℃ ~ 65℃ Operating Temp: -40℃ ~ 85℃ | ||||||||||
| Attenuation (@20℃ ) | ||||||||
|---|---|---|---|---|---|---|---|---|
| 150Mhz | 450Mhz | 900Mhz | 1500Mhz | 1800Mhz | 2000Mhz | 2500Mhz | 5800Mhz | |
| 5.0dB/100m | 8.9dB/100m | 12.8dB/100m | 16.8dB/100m | 18.6dB/100m | 19.6dB/100m | 22.2dB/100m | 35.5dB/100m | |
