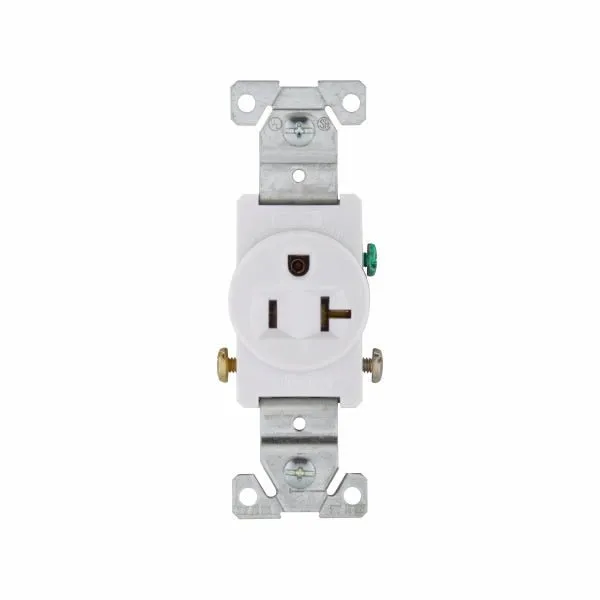

Spec Grade Single Receptacle 20 AMP 125V
Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, White, Brass, Nylon face, PVC bottom, 5-20R, Single, Screw, PVC
- Galvanized steel, wrap-around yoke mounting strap for superior assembly security; extra length/width helps reach large panel cutouts for Code Compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw-Catch feature on duplex devices speeds mounting of wall plates
- Tamper Resistant receptacles provide compliance with 2014 NEC® Article 406.12 that states that all 15A & 20A, 125V receptacles installed in dwelling units must be tamper resistant
| Length (in.)
|
1.31" |
| Width (in.)
|
4.19" |
| Depth (in.) |
0.83" |
| Weight (lbs) Each |
0.16 lbs |
Spec Sheet
Info
| Type |
Spec Grade Single Receptacle |
Connector Type
|
|
| Certifications |
cULus Listed
|
| Color |
White |
| Material |
Thermoplastic, PVC body, Impact-resistant thermoplastic face
|
Additional Info
| Wiring Method |
Side Wire |
| Mounting |
Flush |
| Wire Size |
#14-10 AWG |
| Feature |
Auto-grounding |
| Number of Poles |
Two-Poles
|
| NEMA Configuration |
5-20R |
| Voltage |
125V |
| Amp. Rating |
20 A |
| Use |
Commercial
|
| Torque Rating |
14 lbf-inch |
| Compliances |
- cULus Listed to UL 498, file no. E15058
- UL verified to Federal Spec. WC-596G
- NOM certified
|
