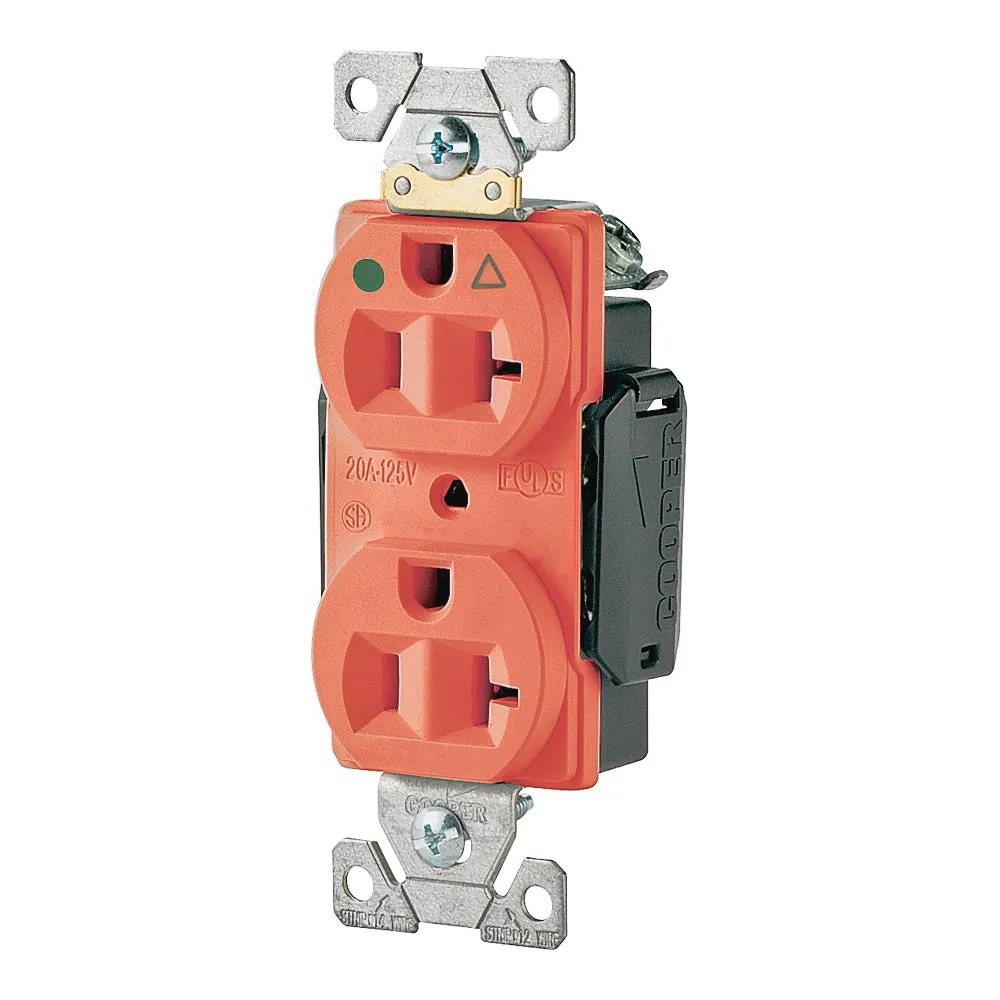

Hospital specification-grade straight blade receptacles - isolated ground premium back wire & side wire. Arrow Hart's feature rich line of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.

Product Details

Manufacturer:

Manufacturer's Part Number: IG8300RN

Show me more

Product Features

• High-impact- and chemical-resistant nylon face

• Screw-Catch™ feature on duplex devices speeds mounting of wallplates

• Long, broad mounting strap helps reach large panel cutouts for code compliance

• Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces (duplex only)

• Exclusive 5-leaf, brass line contacts provide consistent performance and great plug retention (duplex only)

• Tapered lead in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections

• All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility

• Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier (duplex only)

• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
