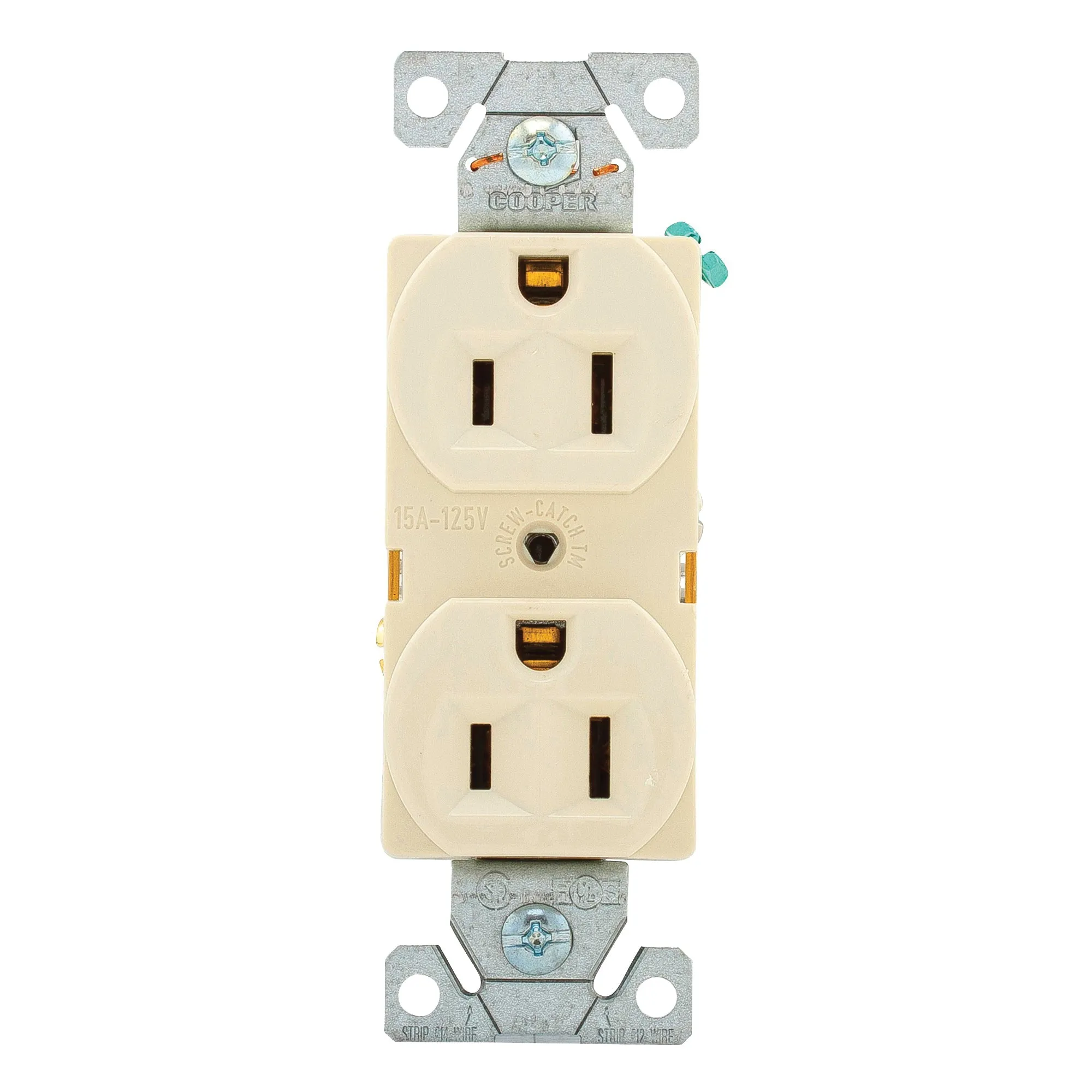

Commercial specification-grade straight blade receptacles - 15 A, 125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
Product Details
Manufacturer:
Manufacturer's Part Number: BR15LA
Show me more
Product Features
- Screw-Catch feature on duplex devices speeds mounting of wallplates
- Galvanized steel, wraparound yoke mounting strap for great assembly security
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Product Specifications
| Color | Light Almond |
| Current Rating | 15 A |
| Dimensions | 4.20 in L x 1.30 in W x 0.88 in D |
| Frequency Rating | 60 Hz |
| Material | Nylon |
| Mounting Type | Yoke |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back, Side |
