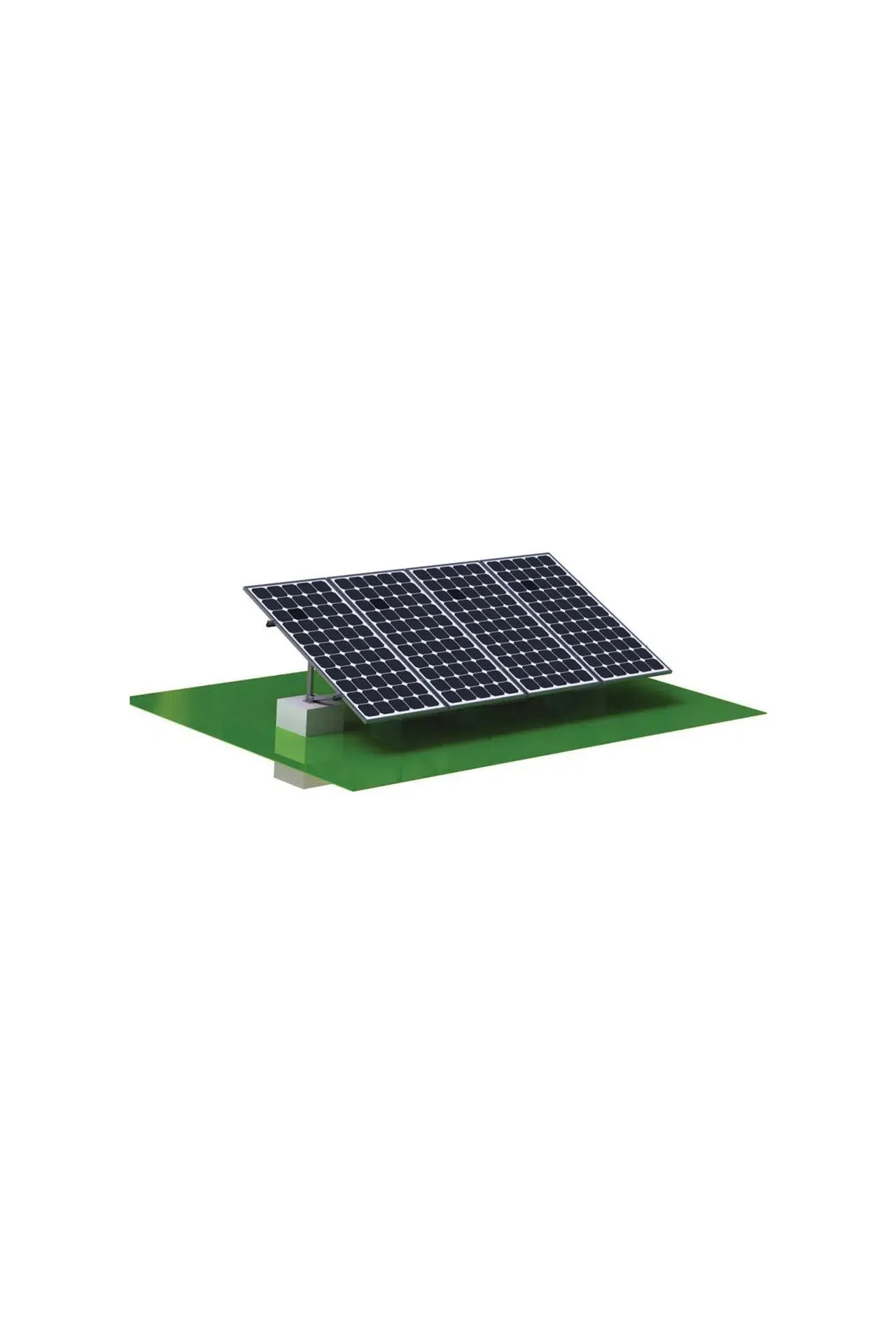

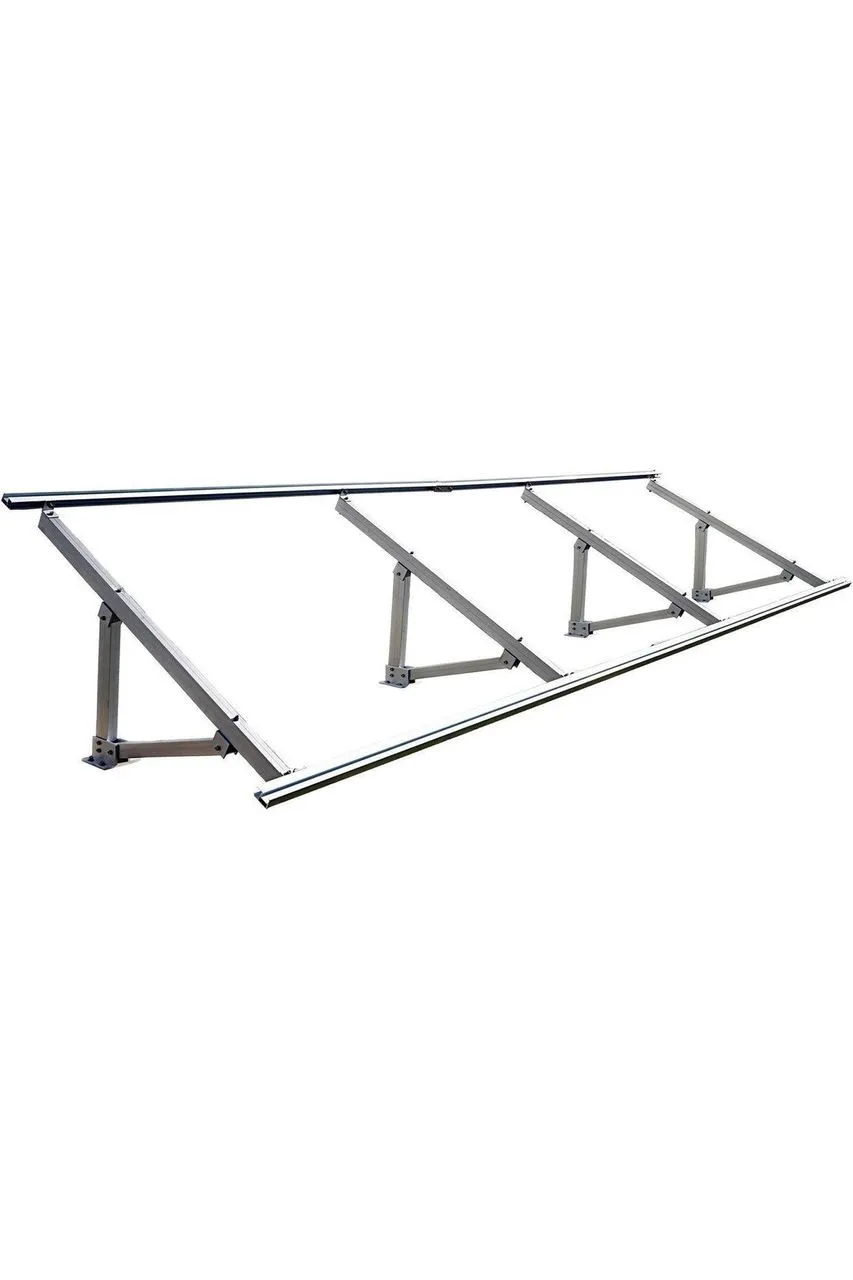

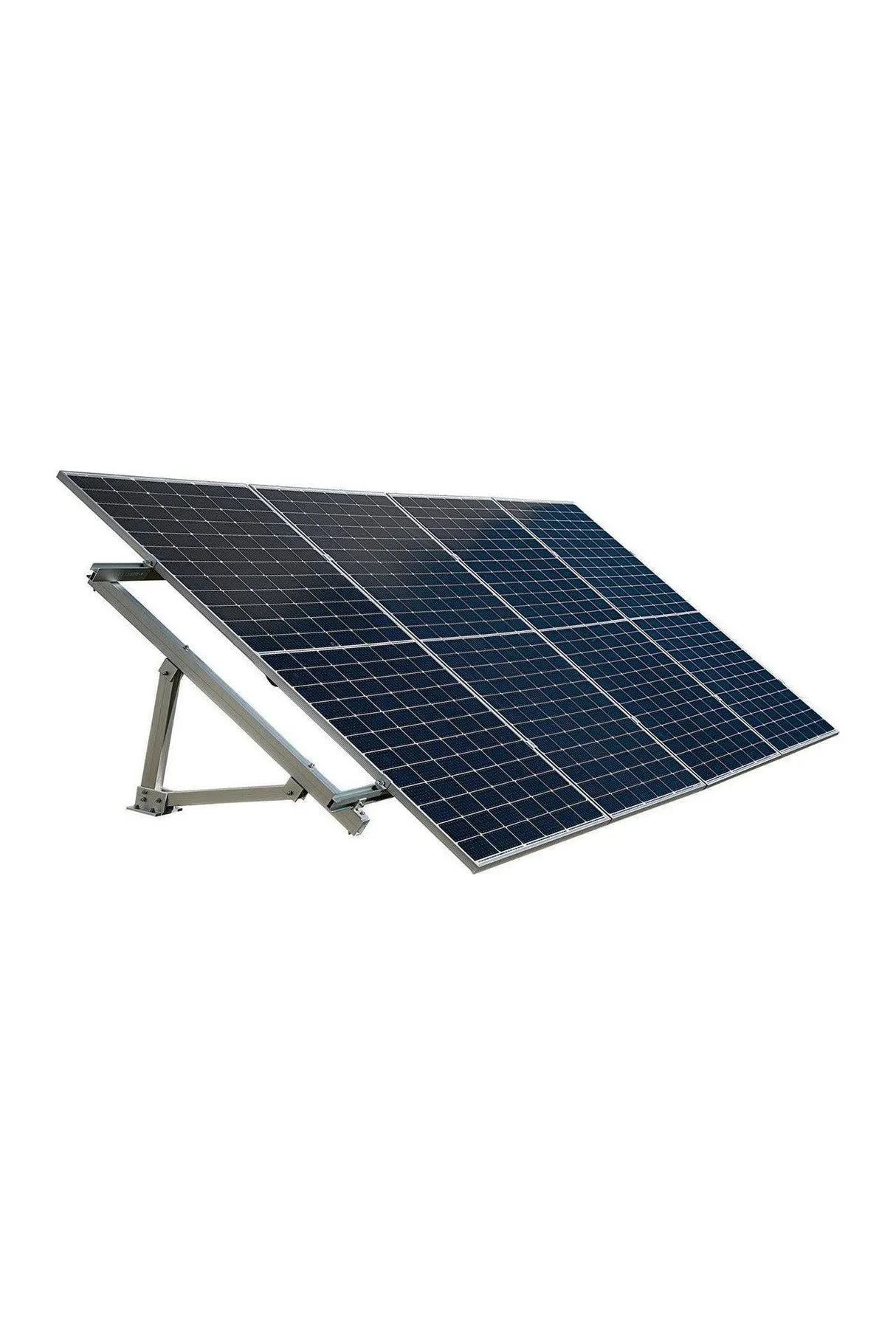

Built to last using high-quality aluminum and stainless steel alloys, the EG4 solar panel ground mount will stand firm even in winds up to 105 mph. EG4’s attention to quality and customer has produced a cost-effective, low-profile solution meaning that you can set these up anywhere and count on them to last. We back our rack with a 10-year mechanical warranty so that you know your array is secure for years to come. However, our hardware isn’t just durable, it’s also simple!
With just a few tools, you can assemble the entire rack alone, no assistance is needed. This makes it a perfect choice for homeowners and installers alike by cutting labor costs and streamlining the installation process.
Cost-Effective Yet Outstanding Durability
Aluminum/Steel Alloy
Lightweight, strong, and weather resistant.
Rated to Withstand Winds Up to 105mph.
Low Profile Design
Simple Design - Install Almost Anywhere!
Quality Assurance
Backed By a 10-Year Warranty
BrightMount Versatility
Multiple Terrains
Concrete, wood, soil with appropriate substructure
Flat Top Roof(tied to struts)
Adjustable Angle: 25° - 45° for All around maximum solar absorption.
Easy Installation
Minimal tools needed
Optional concrete if needed with a masonry drill bit
Gloves, drill or wrench, tape measure & level
Can be Assembled in ~30 minutes
Recommended Tools/Safety Equipment
Work gloves, cordless drill/driver, monkey wrench, 12.5mm drill bit, Allen wrench, measuring device, level.
Rails:
4x | 1591011-SP24 | EG4 BrightMount Rail | 2280mm | 89.76 In
Mounts:
4x | 1591011-SP28 | EG4 25 Degree Mounts
Gusset:
6x | 1591011-SP6 | EG4 L-Connector for Rails
Rail Connector:
2x | 1591011-SP27 | EG4 Rail Connector With Bonding Jumper
End-Clamps:
4x | 1591011-SP12 | EG4 End Clamp 30mm
4x | 1591011-SP21 | EG4 End Clamp 35mm
4x | 1591011-SP21 | EG4 End Clamp 40mm
Mid-Clamps:
Fits 30mm to 40mm
Lugs:
2x | 1591011-SP3 | EG4 Earth Lug Extruded 6005
Grounding Clips:
6x | 1591011-SP7 | EG4 Grounding Clip SS304
4x | 1591011-SP23 | PV Cable Lip - 2 Wire
Expansion Screw:
16x | 1591011-SP8 | EG4 Expansion Screw 10*100
