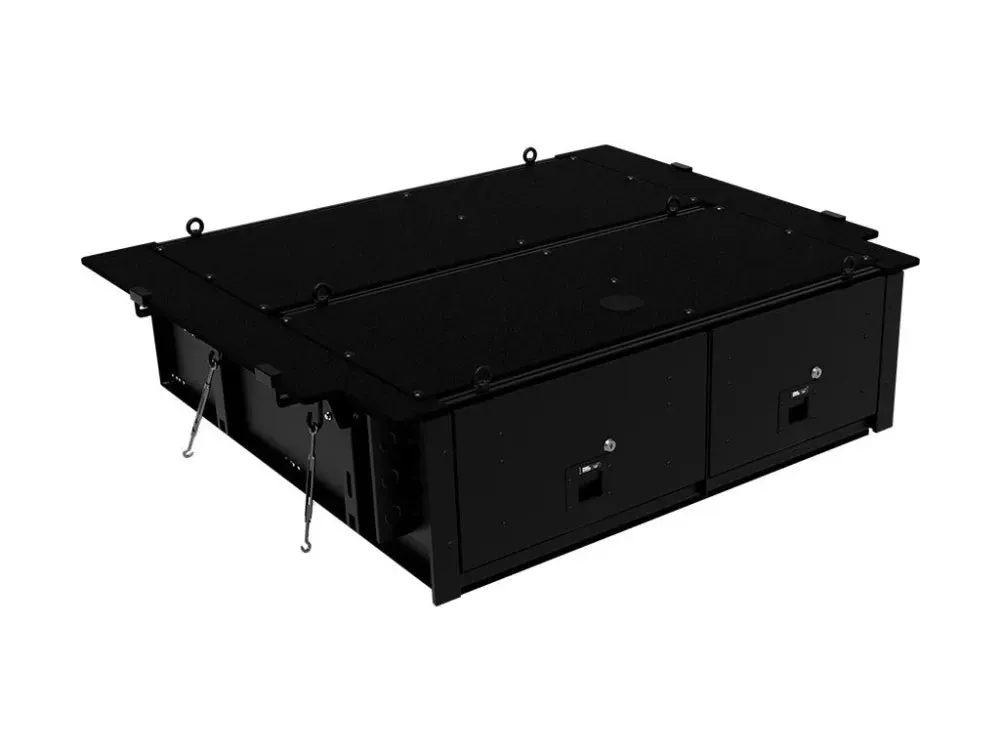

Land Rover Discovery 3/4 LR3/LR4 Double Drawer Kit by Front Runner

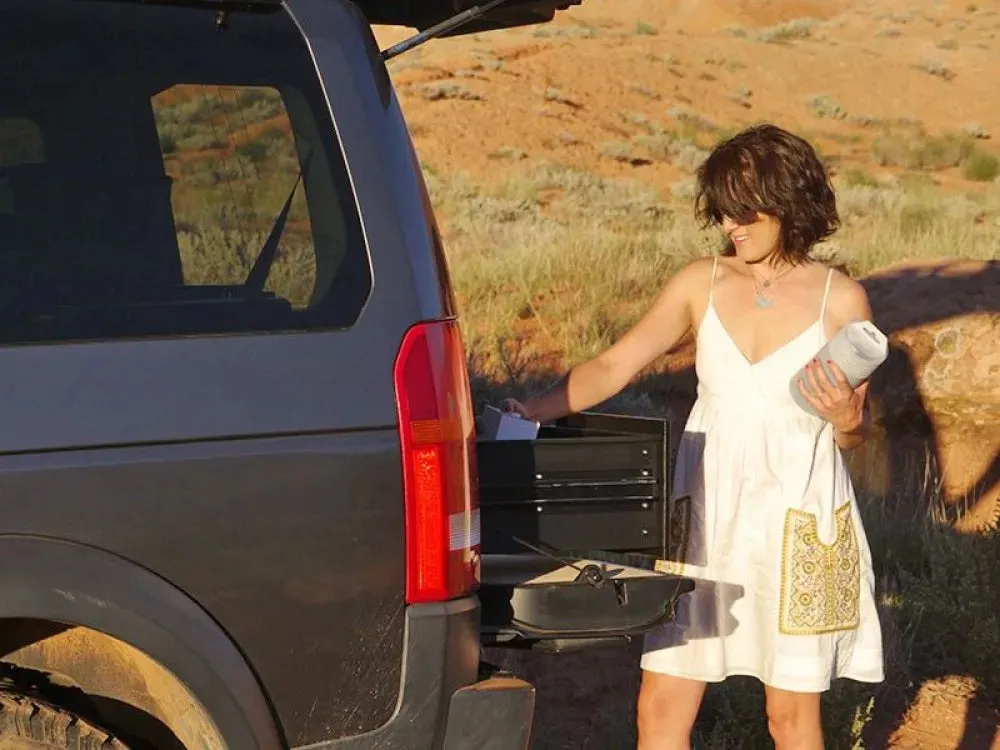

Make storing and organising gear and valuables a no-brainer. These 2 lockable drawers with fitted deck and faceplates have been designed specifically for the Land Rover Discovery LR3 and LR4. Hide contents from prying eyes while creating more usable and easily accessible storage space in your vehicle. Engineered tough for both on and off-road travel.
This drawer kit has 2 lockable drawers, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.
- 113kg per drawer load carrying capacity.

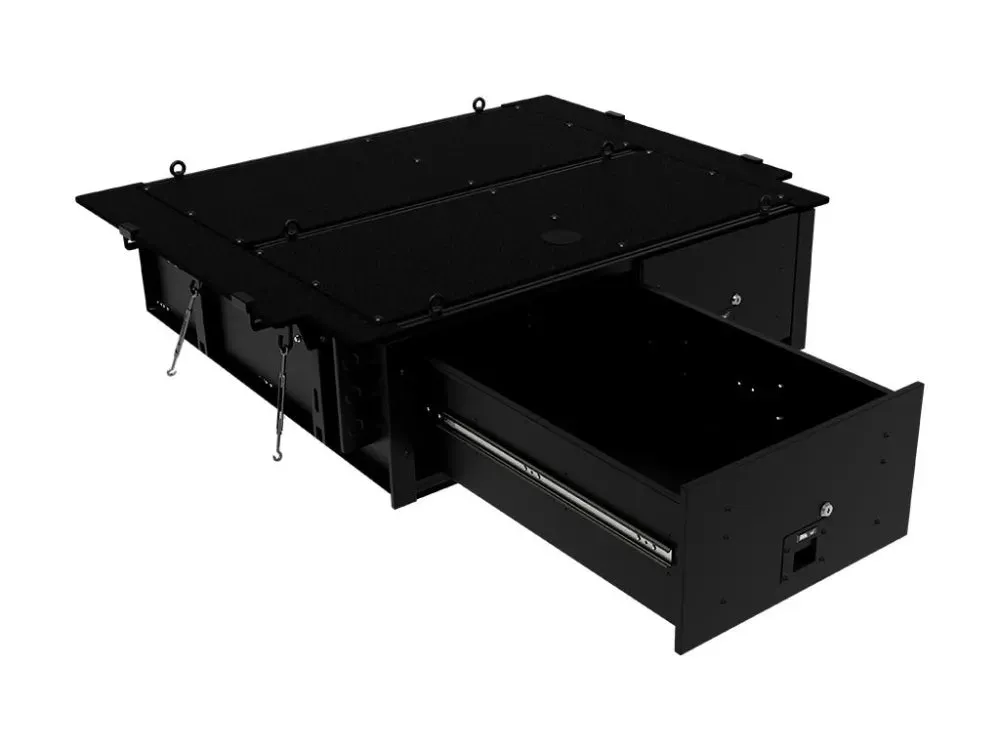

- High-strength bearing slides allows each drawer to extend nearly 100% from the anchored base.
- Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear.
- The flat deck incorporates three cargo attachment channels and 6 .
- Customise your own storage configurations. Stack and secure luggage,, , aluminium boxes and other storage containers to the top deck using or other straps.
- The deck above the drawers can also be used to mount Front Runner Cargo / Fridge Slides.
- The side decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbecue skewers, etc.
- To create a removable box option, use or inside the drawers. The or can be used to further organise and easily move gear in and out of a vehicle.
- To create compartments within the drawers, add the optional steel . Helps organise and stop excessive movement of gear and supplies. Sold in pairs, these drawers can accommodate up to 4 dividers per drawer.
- The deck is covered with a durable, UV resistant nylon pile black carpet detailed to complement the vehicle’s interior contours.
- The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
- Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.
- This drawer kit can be easily installed in minutes by attaching the supplied carabiners and turnbuckles to the vehicle’s existing mounting points and the drawer mounting brackets. Removing the drawers is just as easy.
The LAND ROVER DISCOVERY LR3 AND LR4 DRAWER KIT allows access to the spare wheel winder through an access "port" in the top deck. There is no need to remove the drawers to lower the spare.
Please Note: Cub Packs, Flat Packs and Drawer Dividers are not included when purchasing this Drawer System and are sold separately.
Specifications
Consists of:
- 1 x Front Runner Drawer unit (SSDR002)
- 1 x Land Rover Discovery LR3 & LR4 Drawer Deck Completion Set
- 2 x Push to Close latch with 2 keys per lock
- 3 x Accessory Channels
- 6 x Eye Nuts for Accessory Channel
- 1 x T Wrench with 2 custom sockets for wheel winder
- Installation Hardware including 4 turnbuckles to secure unit to vehicle
- Fitting Instruction
Materials used:
- Aluminum - Accessory Channels and Sub Frame
- Black powder coated steel - Drawer Bins and Frame
- Carpet and Laminated plywood - Top Deck and Deck Set
Product Dimensions:
Closed:
- 972mm L x 1230mm W x 328mm H
Open:
- 1896mm L x 1230mm W x 328mm H
Interior Drawer Dimensions:
Left Hand Drawer:
- 914mm L x 461mm W x 208mm H
Right Hand Drawer:
- 914mm L x 373mm W x 208mm H
Weight:
- 80.3Kg
Load Rating:
- 113Kg per Drawer
Special Notes:
- Supplied with a T-wrench and 2 custom sockets for operating the wheel winder through the drawer system.
