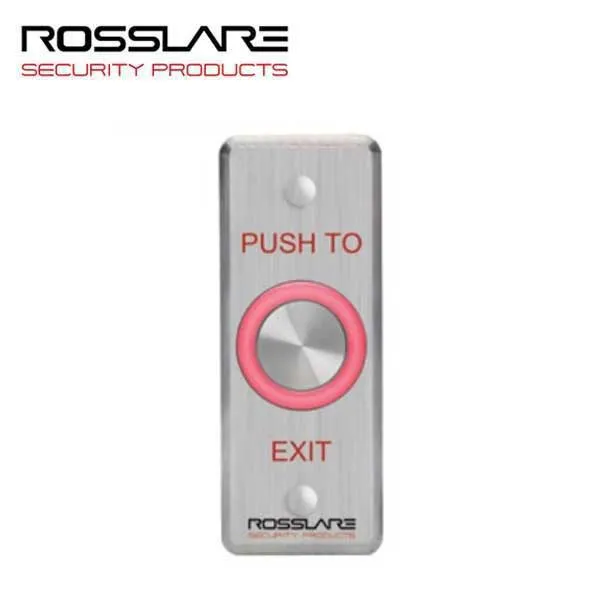

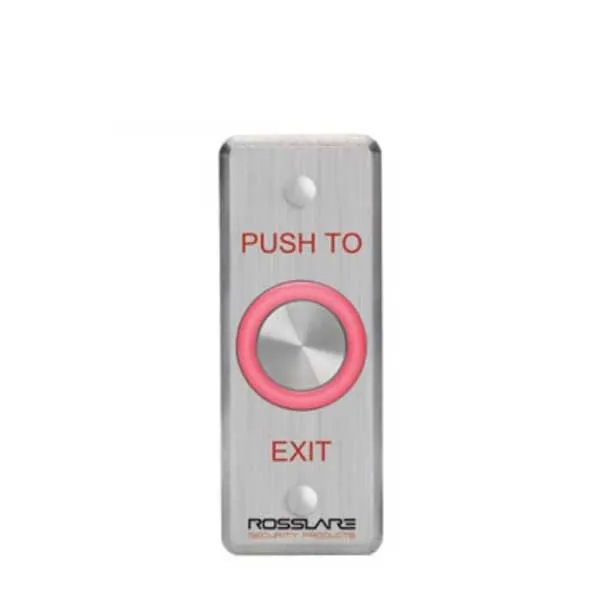

Rosslare's EX-16EO electronic switches enable the access control of a magnetic lock or electric lock strike. The EX-16EO are heavy duty, illuminated, vandal resistant, analog timed switches, designed for both indoor and outdoor use.
Features:
- Solid state piezoelectric switch technology
- N.O. and N.C. relay pulse simply by the touch of a finger
- Output and Indication Toggle Option
- Adjustable Output and LED Indication Time of 1 to 60 Seconds
- Light Ring Status Indicator and Accidental Activation Hindrance
- Jumper Selectable Illumination Status Red Green, or No Illumination
Specifications:
| Type |
Piezo |
| Sensor / Switch Type |
Analog Toggle |
| Operating Voltage |
10-24 VDC |
| Led Type |
Ring |
| IP Rating | IP65 |
| Dimensions | 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.) |
| Output Mode | Selectable Toggle or timed Pulse |
| Operating Temperature | -35˚C to 66˚C (-31˚F to 151˚F) |
| Relay Expectancy | 100,000 @ 2 A 30 VDC 500,000 @ 1 A 30 VDC |
| Manufacturer's Warranty: | Limited Product Warranty |
