DESCRIPTION
3/24

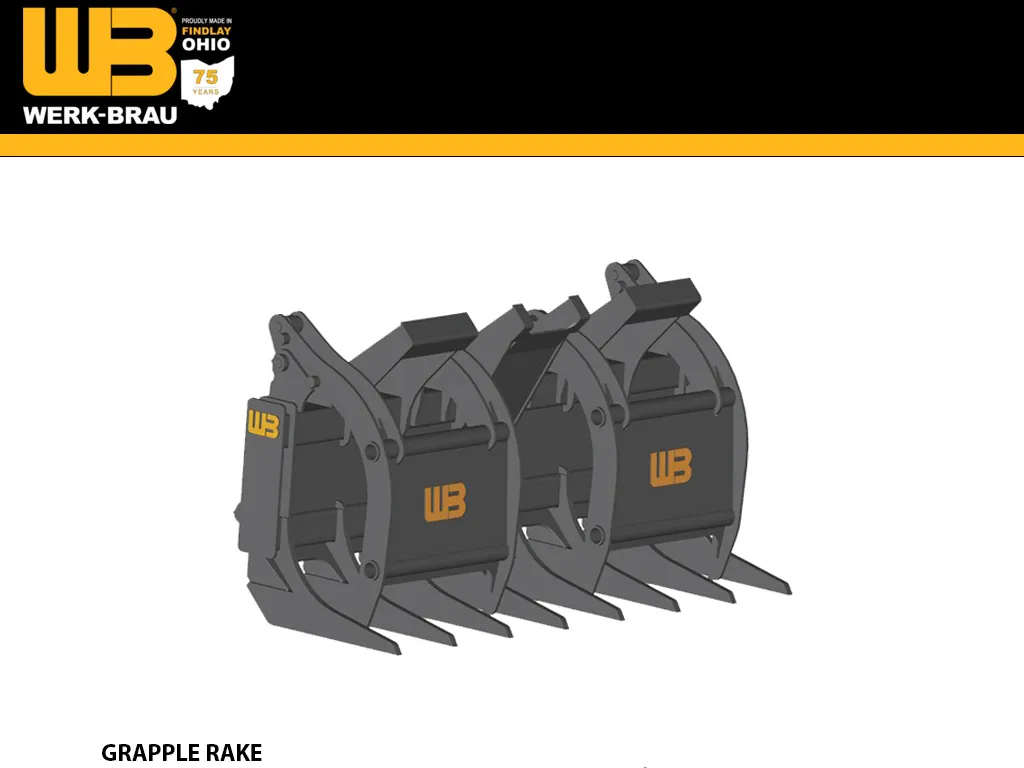

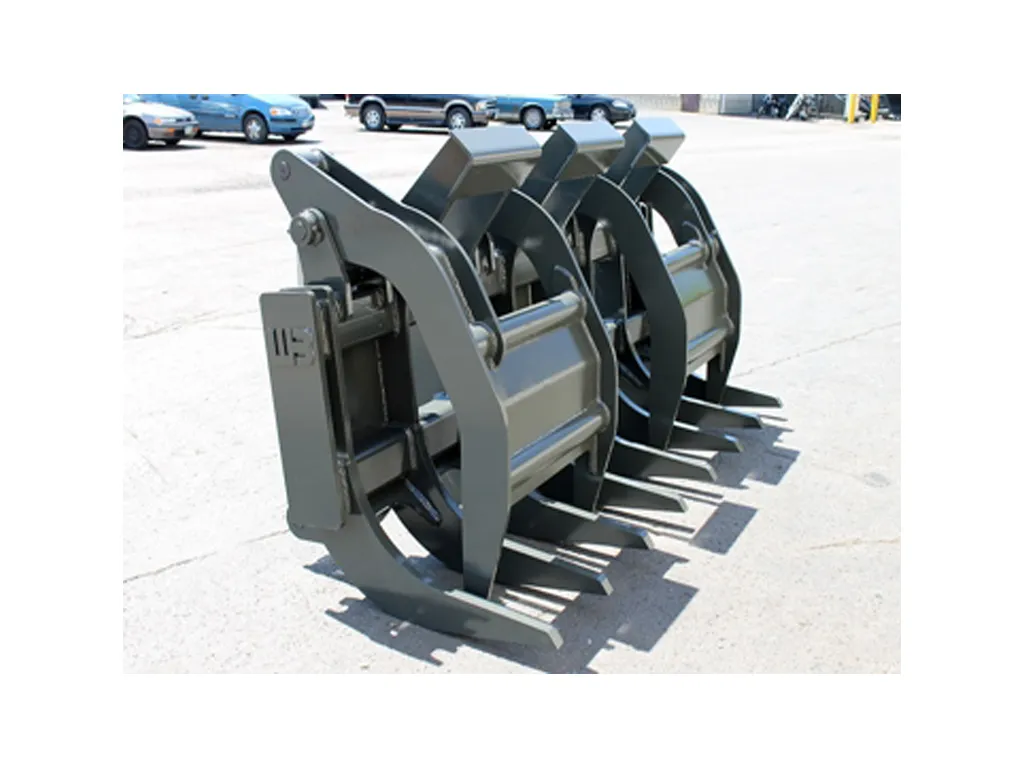

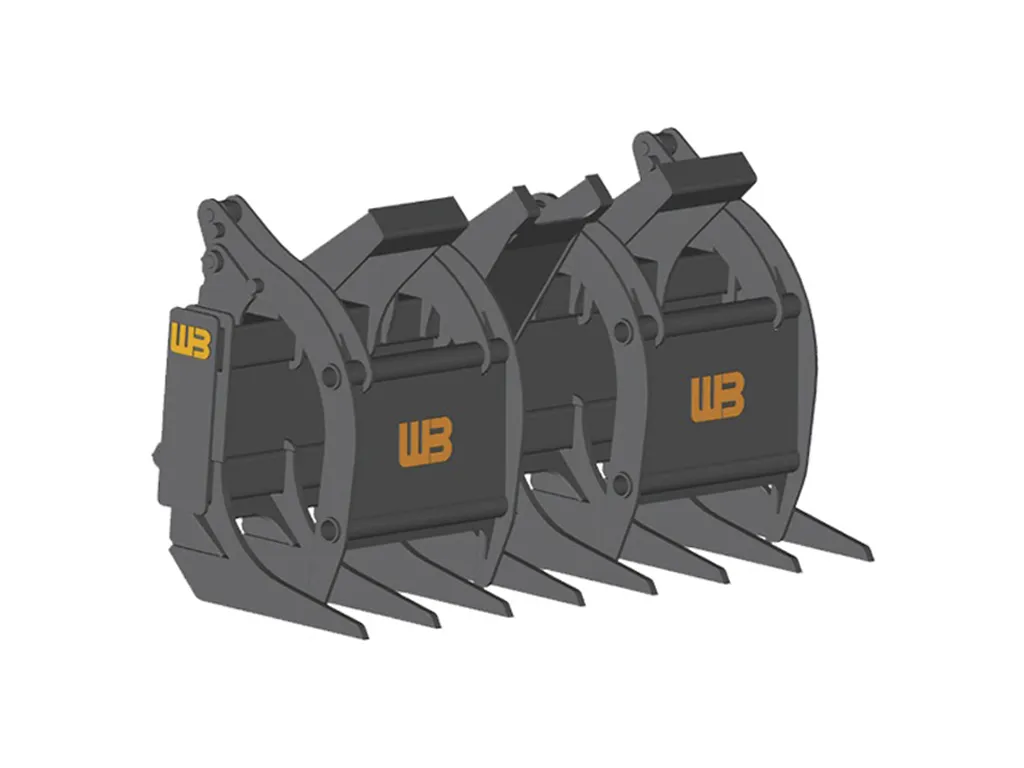

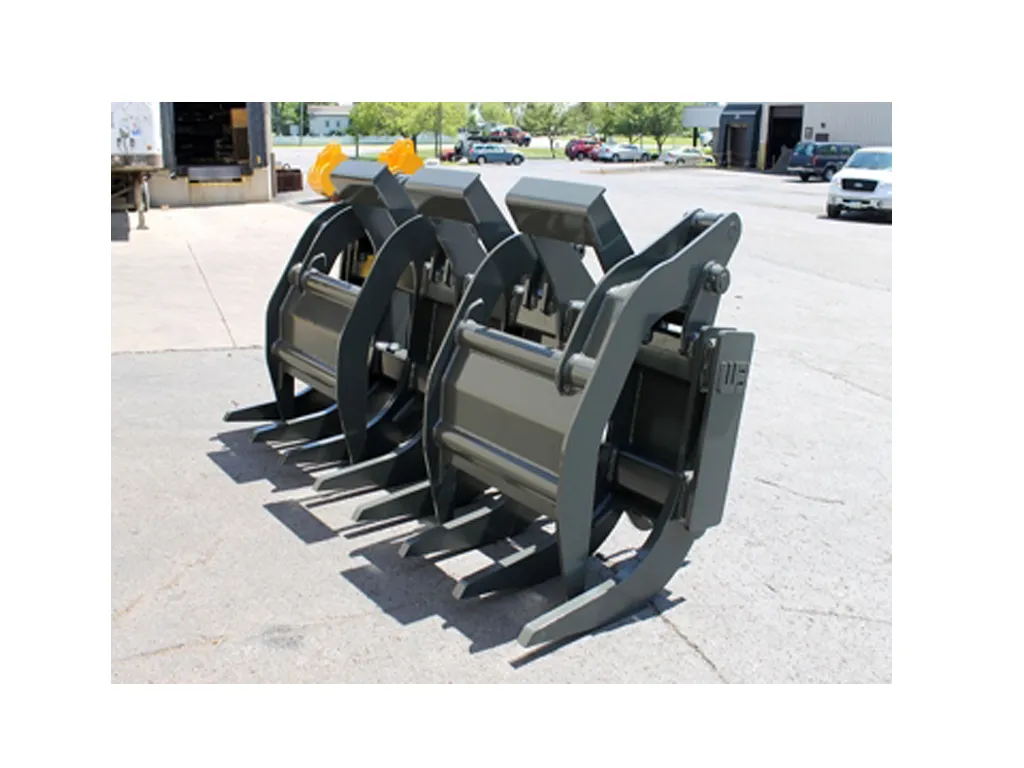

GRAPPLE RAKE
Recommended Applications
Excellent attachment for stacking and loading metal scrap, brush removal after land-clearing, refuse after clean-up, and other cumbersome material requiring the action of clamping for purposes of removal.
Quality Construction
Grapple arms are hydraulically operated and constructed of high tensile strength steel. High quality cylinders are used and various tine styles are available. High strength, abrasion resistant steel is utilized throughout the entire weldment in all critical areas for added wear. Side guards are standard reducing wear and protecting tines.
Standard Sizes
Widths range from 96" - 132". Other widths are available upon request for quotation.
Additional Features
Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available
- Wide mouth opening
- Side guards
- High Quality cylinders used
- Dual paddle design standard
- Does not include jumper hose kit
SPECIFICATIONS
| PART # | WIDTH | # OF TINES | WEIGHT |
| WL1GRK-96 | 96" | 8 | 2,600 |
FITS
| CLASS 1 (14,000-19,000 LBS) | MODEL |
| CASE | 321G |
| CAT | 914 |
| DEVELON | 160 |
| HITACHI | ZW120 |
| HYUNDAI | HL720 |
| JCB | 217-3//S-3, 408, 409B ZX, 411 |
| JOHN DEERE | 710, 244, 304, 324, 344 |
| KOMATSU | WA70, WA80, WA100 |
| KUBOTA | R430, R530, R630 |
| LIEBHERR | L509, L514, L518 |
| LINK-BELT | L125 |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | TW80 |
| VOLVO | L45G, L50G |
| WACKER NEUSON | |
| YANMAR |
